Your Products Glow, Your Sales Flow
The HH Digital Fridge is Here
Looking for a powerful way to boost your front-of-house appeal? Meet the HH Digital Fridge — where cutting-edge display meets chilled perfection.
This isn’t just a fridge. It’s a 65” IPS screen seamlessly built into a high-performance refrigeration unit, designed to grab attention and drive sales from the moment your customers walk in.
Perfect for:
Behind the bar or front-of-house placement
Promoting drinks, food specials, happy hours & events
Creating an unforgettable customer experience
Why Choose the HH Digital Fridge?
Dual Functionality – Keep your best-selling drinks ice-cold while showcasing dynamic content in real time
178° Viewing Angle – Crystal-clear visuals from any direction
Built for Busy Environments – Designed for all-day operation in high-traffic hospitality settings
Energy-Efficient & Frost-Free – Reliable and cost-effective
Easy Content Updates – Instantly change what you display based on time of day, special events, or offers
Technical Specifications

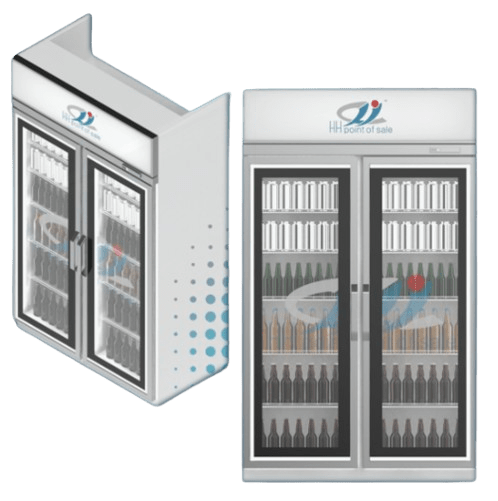

Double-door Fridge
65 inch | 1260*700*2150mm
Two-door cabinet parameters:
Size (L * W * H) : 1260*700*2150mm
Cooling method: air-cooled, frost-free
Volume (L) : 350
Temperature range: 0-8 degrees
Power (W) : 200W
Panel parameters:
Screen display size (L * W)mm: 65 inches Display size: 1428*804mm Single door cutting screen display size: 1428*444mm
Panel technology: IPS Screen ratio (length * width) : 9:16
Interface and function configuration:
1 EDP interface, 1 HDMI 4K display
Onboard backlight control supports 12V backlight power supply
System: Android 11
Network: 10/100M adaptive Ethernet
Audio: 8 O ·5W dual audio power amplifier output
Power supply: Magmet 66T industrial grade power supply
WIFI: Built-in high-performance USB interface WiFi module, support IEEE 802.11b /g/n
HDMI output
Input port Network cable port
Audio I/O Interface (LineOut)
Display parameter:
Natural resolution: 65 inches conventional resolution: 1920×1080(FHD) Cutting resolution: 1920*596FHD)
Brightness: 300-500cd/㎡
Contrast ratio: 5,300:1
Dynamic contrast: 50,000:1
Viewing Angle (horizontal X vertical) : 178°x178°
Response time: 10ms(GtoG),8ms(Gtog,WOT)
Android system industrial computer parameters:
Board: RK3566
CPU: quad-core, up to 1.8GHz
Display port: 1*LVDS port (single/dual, 6-bit / 8-bit), supporting 3.3V/5V/12V power supply

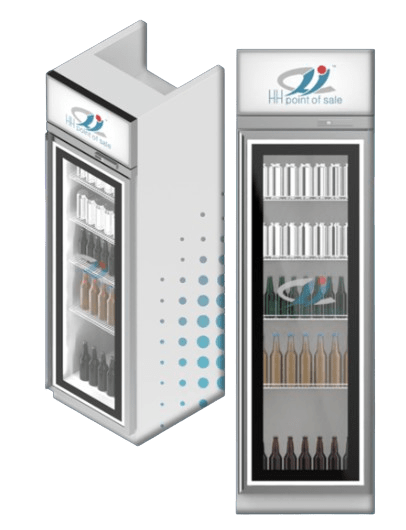

Single-door Fridge
65inch | 650*630*2110mm
Single-door cabinet parameters:
Size (L * W * H) : 650*630*2110mm
Cooling method: air-cooled, frost-free
Volume (L) : 180
Temperature range: 0-8 degrees
Power (W) : 200W
Panel parameters:
Screen display size (L * W)mm: 65 inches Display size: 1428*804mm Single door cutting screen display size: 1428*444mm
Panel technology: IPS Interface configuration:1 EDP interface, 1 HDMI 4K display
Interface and function configuration:
1 EDP interface, 1 HDMI 4K display
Onboard backlight control supports 12V backlight power supply
System: Android 11
Network: 10/100M adaptive Ethernet
Audio: 8 O ·5W dual audio power amplifier output
Power supply: Magmet 66T industrial grade power supply
WIFI: Built-in high-performance USB interface WiFi module, support IEEE 802.11b /g/n
HDMI output
Input port Network cable port
Audio I/O Interface (LineOut)
Display parameter:
Natural resolution: 65 inches
conventional resolution: 1920×1080(FHD)
Cutting resolution: 1920*596(FHD)
Brightness: 300-500cd/㎡
Contrast ratio: 5,300:1
Dynamic contrast: 50,000:1
Viewing Angle (horizontal X vertical) : 178°x178°
Response time: 10ms(GtoG),8ms(Gtog,WOT)
Android system industrial computer parameters:
Board: RK3566
CPU: quad-core, up to 1.8GHz
Display port: 1*LVDS port (single/dual, 6-bit / 8-bit), supporting 3.3V/5V/12V power supply

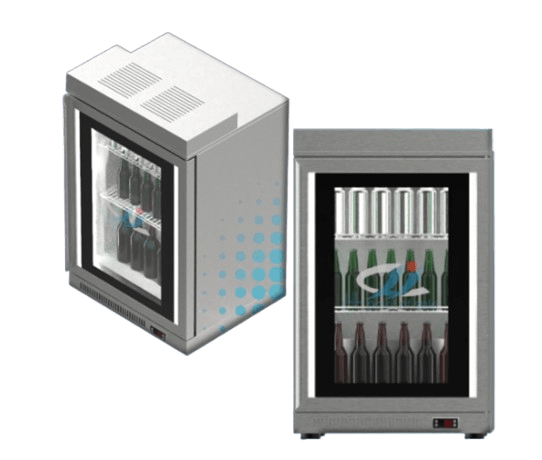

Single-door Fridge
27inch | 600*500*945mm
Single-door cabinet parameters:
Size (L * W * H) :600*500*945mm
Cooling model: Air-cooled, frost-free
Capacity(L): 60 Temperature range: 2-8 Degree Power(W): 100W
Panel parameters:
Screen size(L*W)mm: 597*336mm(27 inches)
Screen technology: IPS
Aspect ratio: 9:16
Natural resolution: 1920×1080(FHD)
Brightness: 500cd/㎡
Contrast ratio: 5,300:1
Interface and function configuration:
System: Android 11
Network: 10/100M Adaptive Ethernet
Audio frequency: 8 ω ·6W dual audio power amplifier output
Power: Magmet 66T industrial grade power supply
WIFI: Built-in high-performance USB interface WiFi module, Supporting IEEE 802.11 b/g/n Input interface: HDMI output
Cable interface:
Audio frequency I/O interface（LineOut）
Audio frequency I/O(MIC)
USB2.0(Supports 2 groups of USB devices)
Display parameter:
Dynamic contrast: 500,00:1
Viewing Angle (horizontal X vertical): 178°x178°
Response time: 10ms(GtoG),8ms(Gtog,WOT)
Android system industrial computer parameters
Board card: RK3566
CPU: Quad-core, up to 1.8GHz
Storage: 2+16G
Display interface: 1*LVDS port (single/dual, 6-bit / 8-bit), supporting 3.3V/5V/12V power supply
1 EDP port, 1 HDMI 4K display board
Backlight control: support 12V backlight power supply
